Thông tin sản phẩm

Mô tả chi tiết
Sản phẩm Bo mạch chủ
Tên Hãng GIGABYTE

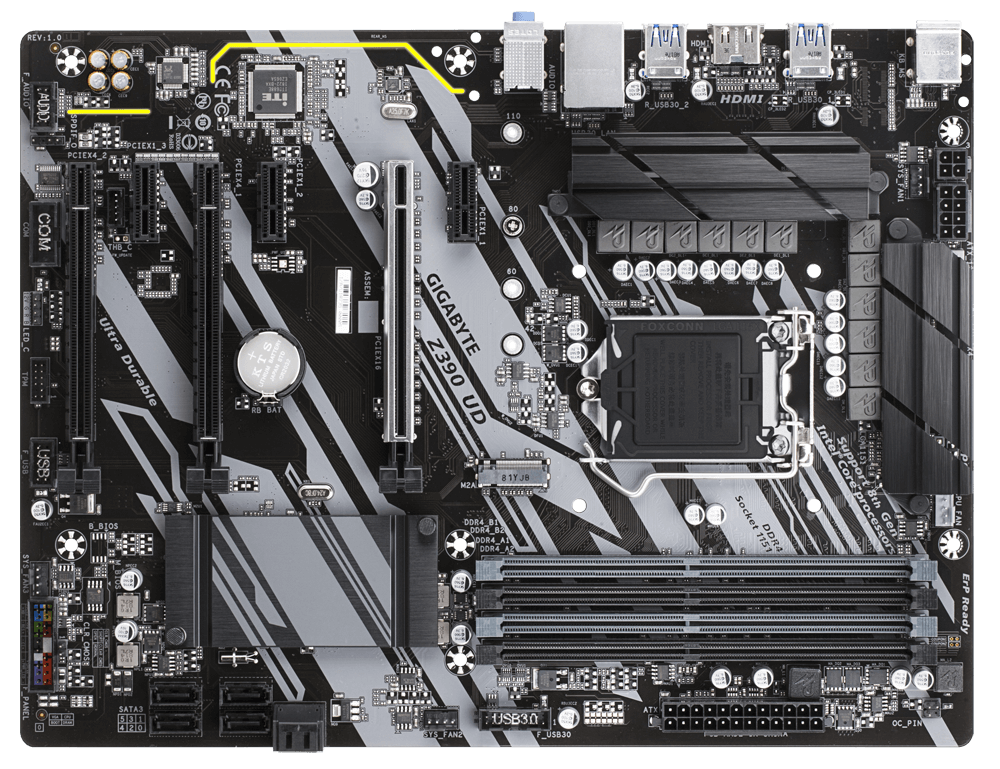

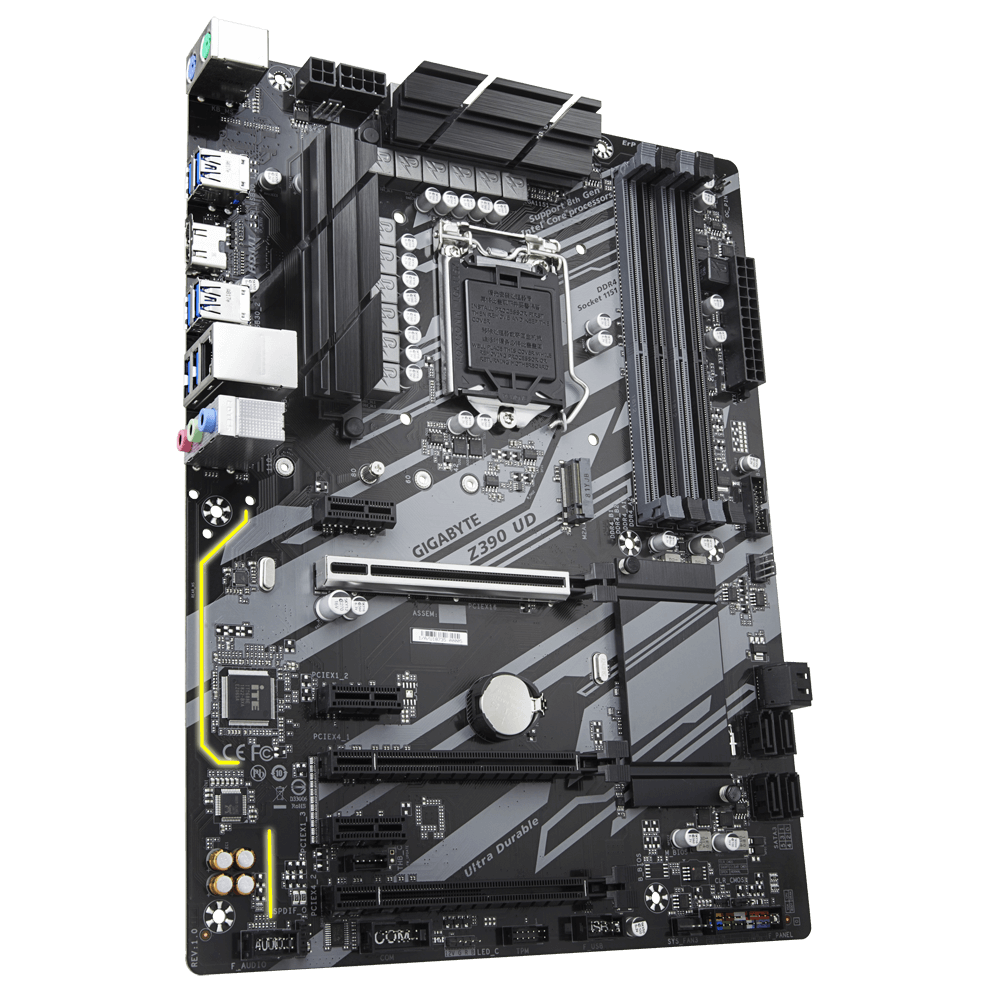

Model Z390 UD
CPU hỗ trợ Intel
Chipset Z390
RAM hỗ trợ 4 x DDR4 memory slots, support up to 64GB DDR4 2666 / 2400 / 2133 MHz
Khe cắm mở rộng 1 x PCI Express x16 slot, running at x16 (PCIEX16)
2 x PCI Express x16 slots, running at x4 (PCIEX4_1/PCIEX4_2)
3 x PCI Express x1 slots
Ổ cứng hỗ trợ 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support)
6 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, RAID 5, and RAID 10
Cổng kết nối (Internal) 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector|
1 x 4-pin ATX 12V power connector
1 x M.2 Socket 3 connector
6 x SATA 6Gb/s connectors
1 x CPU fan header
3 x system fan headers
1 x RGB LED strip header
1 x front panel header
1 x front panel audio header
1 x USB 3.1 Gen 1 header
1 x USB 2.0/1.1 header
1 x S/PDIF Out header
1 x Thunderbolt™ add-in card connector
1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
1 x serial port header
1 x Clear CMOS jumper
Cổng kết nối (Back Panel) 1 x PS/2 mouse port
1 x PS/2 Keyboard port
1 x HDMI port
6 x USB 3.1 Gen 1 ports
1 x RJ-45 port
3 x audio jacks
LAN / Wireless Realtek® GbE LAN chip (10/100/1000 Mbit)
Kích cỡ ATX Form Factor
30.5cm x 23.0cm
