Thông tin sản phẩm
Mô tả chi tiết sản phẩm | |
Sản phẩm | Mainboard - Bo mạch chủ |
Tên Hãng | ASUS |

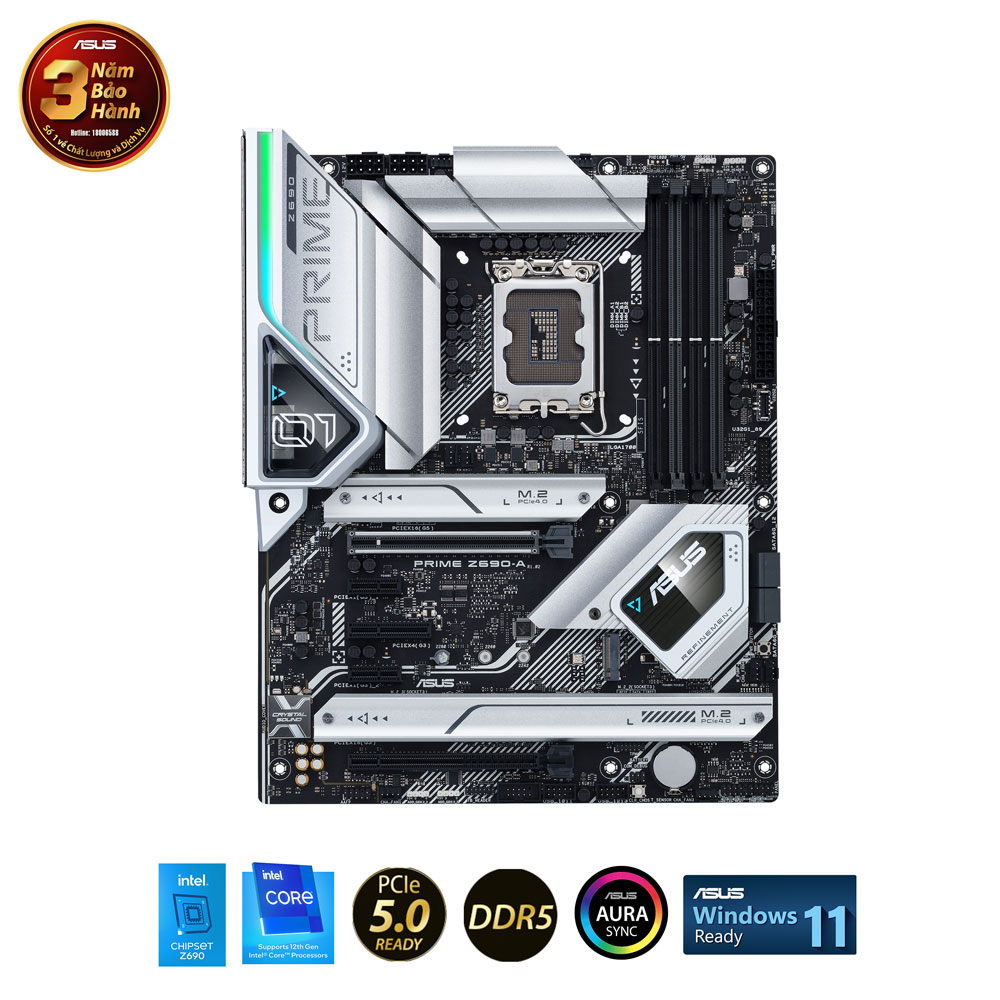

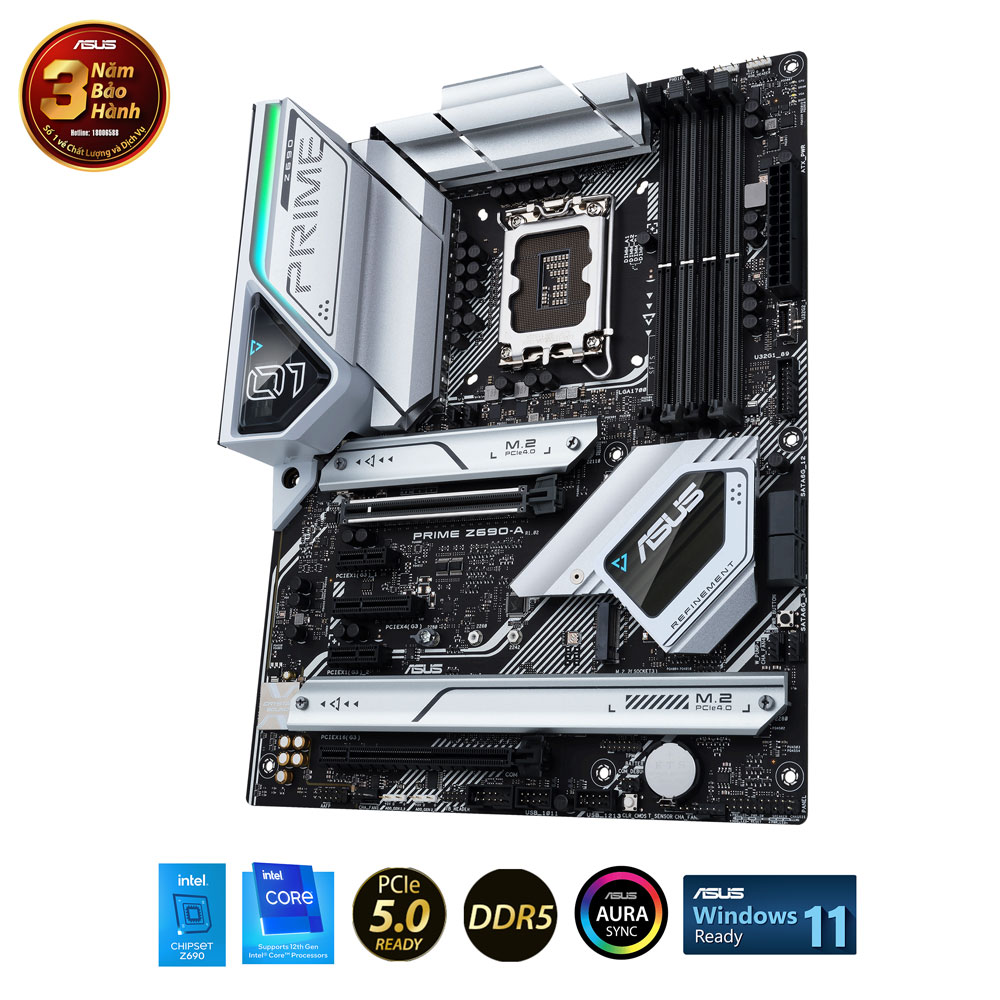

Model | PRIME Z690-A |
CPU hỗ trợ | Intel Socket LGA1700 cho Bộ xử lý Intel Core, Pentium Gold và Celeron thế hệ thứ 12 |
Hỗ trợ Công nghệ Intel Turbo Boost 2.0 và Công nghệ Intel Turbo Boost Max 3.0 (tùy thuộc loại CPU) | |
Chipset | Intel Z690 |

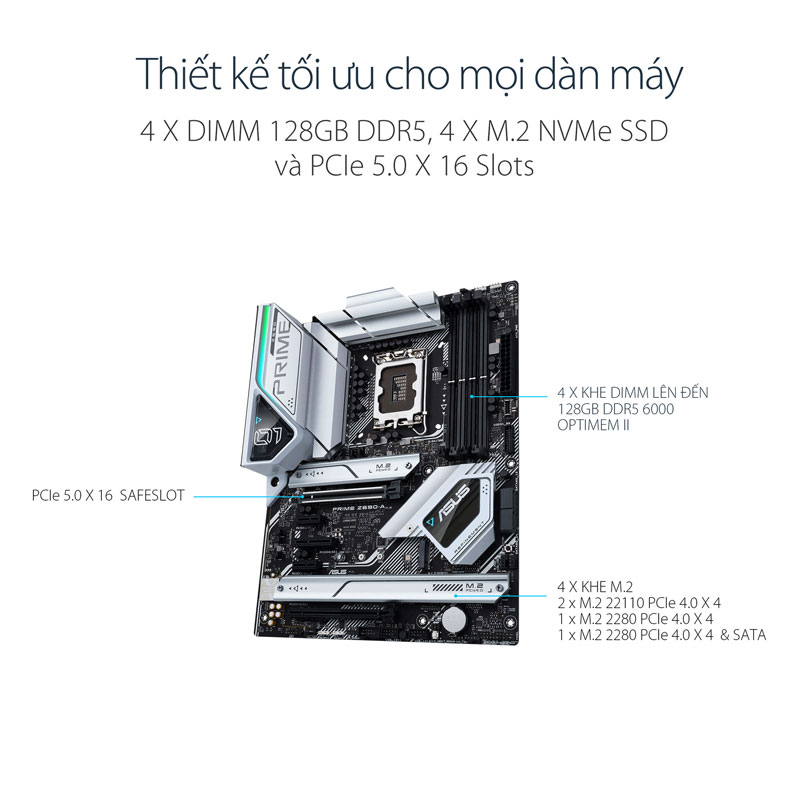

RAM hỗ trợ | 4 x DIMM, Max. 128GB, DDR5 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 Non-ECC, Un-buffered Memory |
Dual Channel Memory Architecture | |
Supports Intel® Extreme Memory Profile (XMP) | |
OptiMem II | |
BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
Đồ họa | 1 x DisplayPort |
1 x HDMI® port | |

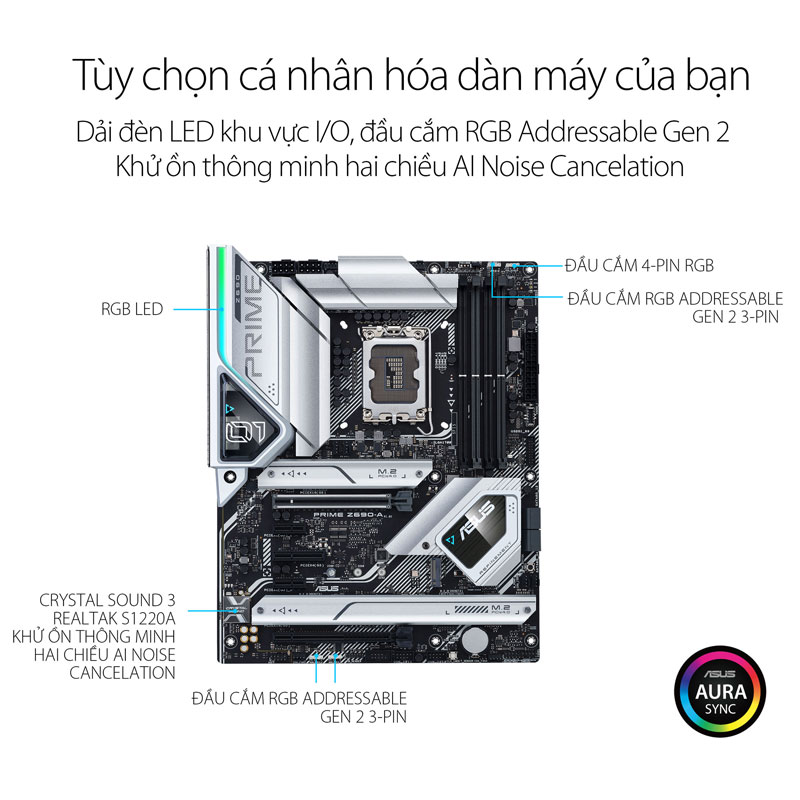

Âm thanh | Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC |
- Impedance sense for front and rear headphone outputs | |
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers | |
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking | |
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) | |
- Supports up to 32-Bit/192 kHz playback | |
Audio Features | |
- Audio Shielding | |
- Power pre-regulator reduces power input noise to ensure consistent performance | |
- Rear optical S/PDIF out port | |
- Premium audio capacitors | |
- Dedicated audio PCB layers | |
- Audio cover | |
- Unique de-pop circuit | |
LAN | 1 x Intel® 2.5Gb Ethernet |
ASUS LANGuard | |
Khe cắm mở rộng | Intel® 12th Gen Processors |
2 x PCIe 5.0 x16 slots (support x16 or x8/x8 modes) | |
Intel® Z690 Chipset | |
1 x PCIe 4.0 x16 slot (supports x4, x4/x4 modes) | |
Khe cắm ổ cứng | Intel®12th Gen Processors |
1 x PCIe 5.0/4.0/3.0 x16 slot(s) | |
Intel® Z690 Chipset | |
1 x PCIe 3.0 x16 slot (supports x4 mode) | |
1 x PCIe 3.0 x4 slot | |
2 x PCIe 3.0 x1 slots | |
USB | Rear USB:Total 8 ports |
1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C®) | |
3 x USB 3.2 Gen 2 port(s) (2 x Type-A + 1 x USB Type-C®) | |
4 x USB 3.2 Gen 1 port(s) (4 x Type-A) | |
Front USB: Tổng 7 cổng | |
1 x USB 3.2 Gen 2 connector(s) (support(s) USB Type-C®) | |
1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports | |
2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports | |

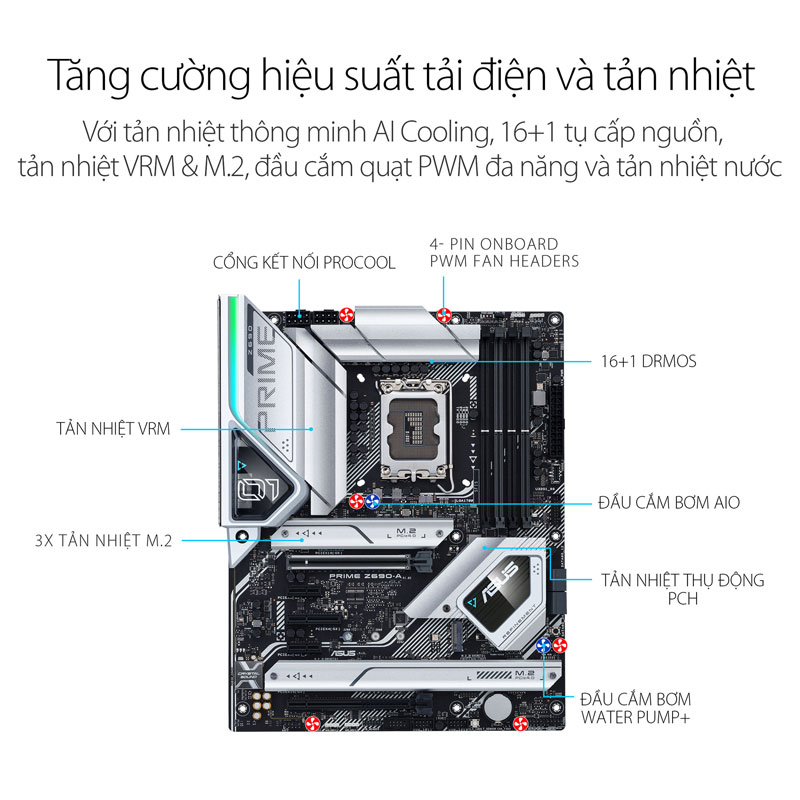

Cổng kết nối (Bên trong) | Fan and Cooling related |
1 x 4-pin CPU Fan header(s) | |
1 x 4-pin CPU OPT Fan header(s) | |
1 x 4-pin AIO Pump header(s) | |
4 x 4-pin Chassis Fan header(s) | |
1 x W_PUMP+ header(s) | |
Power related | |
1 x 24-pin Main Power connector | |
2 x 8-pin +12V Power connector | |
Storage related | |
4 x M.2 slots (Key M) | |
4 x SATA 6Gb/s ports | |
USB | |
1 x USB 3.2 Gen 2 connector (support(s) USB Type-C®) | |
1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports | |
2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports | |

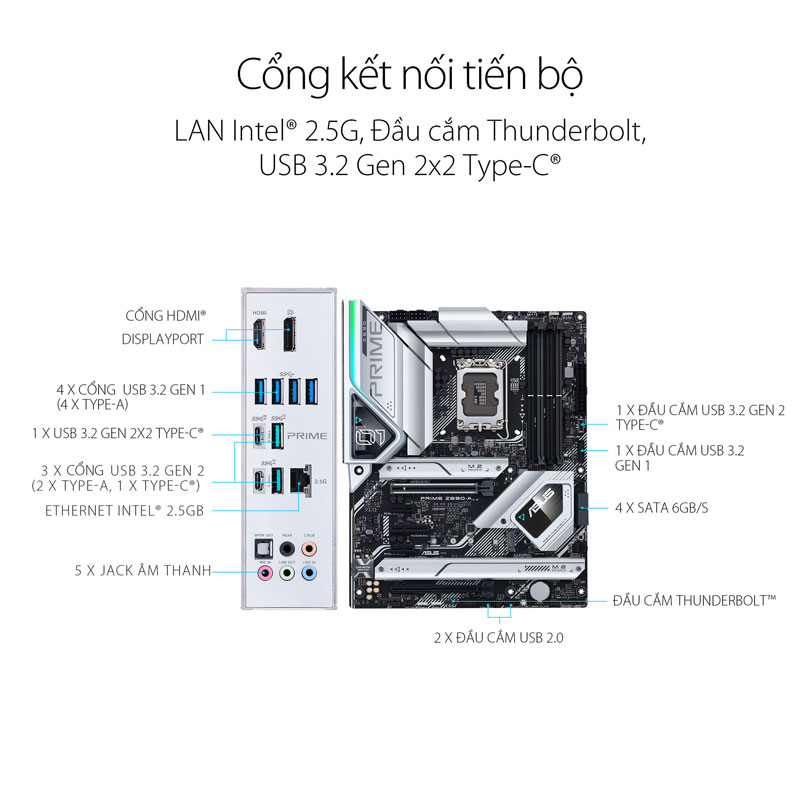

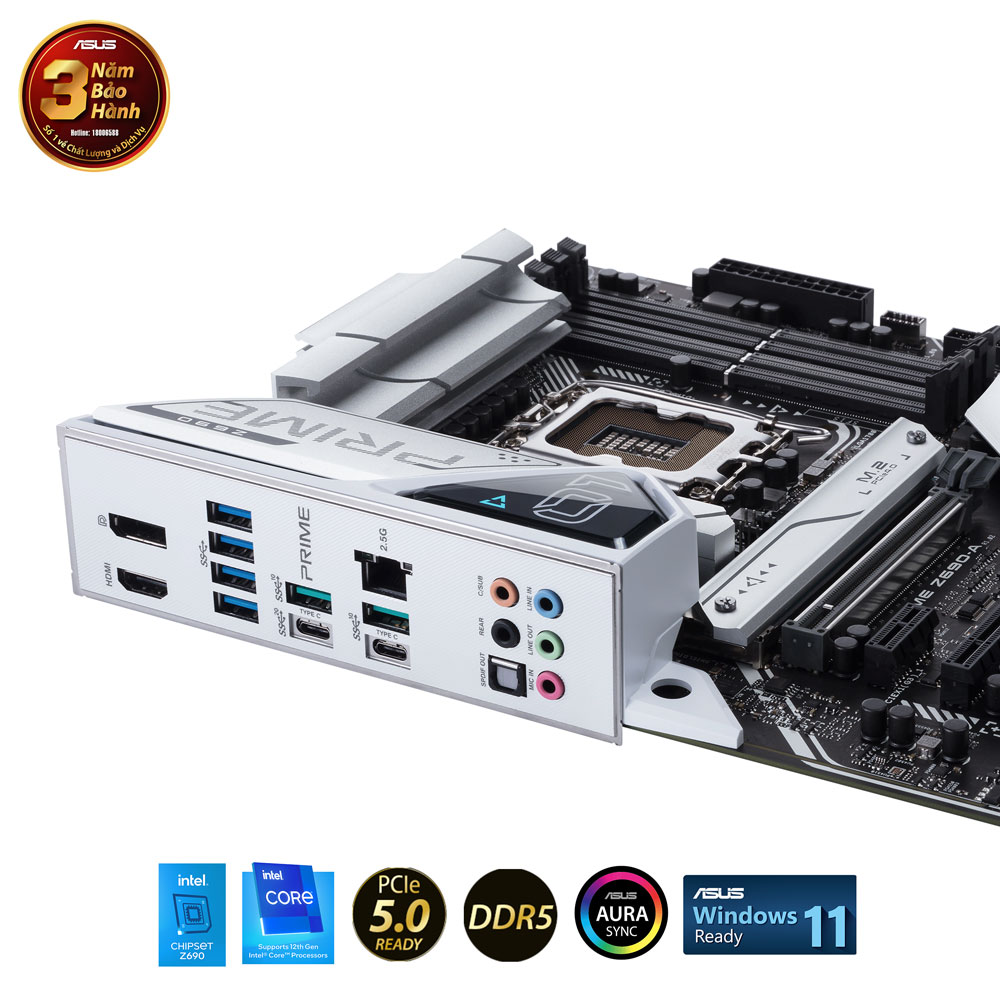

Cổng kết nối (Phía sau) | 1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C®) |
3 x USB 3.2 Gen 2 port(s) (2 x Type-A, 1 x Type-C® ) | |
4 x USB 3.2 Gen 1 port(s) (4 x Type-A) | |
1 x DisplayPort | |
1 x HDMI® port | |
1 x Intel® 2.5Gb Ethernet port | |
5 x Audio jacks | |
1 x Optical S/PDIF out port | |
Kích cỡ | ATX - 30,5cm x 24,4cm |
